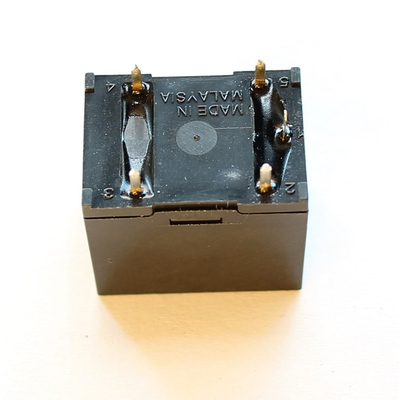

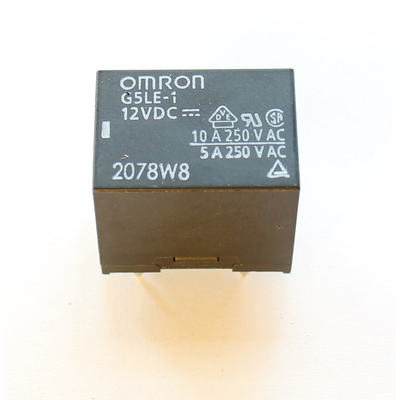

Relay 12VDC 10A 1 x on/(on) - G5LE-1 12VDC
Description
Relays 12VDC 10A 1 x on/(on) - G5LE-1 12VDC
- Manufacturer: OMRON
- Relay type: Electromagnetic
- Contact configuration: SPDT
- Nominal coil voltage: 12VDC
- AC contact rating @R (resistive load): 10A / 240VAC
- DC contact rating @R (resistive load): 8A / 30VDC
- Max. contact current: 10A
- Max. switching voltage: 250V AC, 125V DC
- Relay type: Mini
- Mounting: PCB
- Coil resistance: 360 Ohm
- Operate time: 10ms
- External dimensions: 22.5 x 16.5 x 19mm
- Release time: 5ms
- Coil power consumption: 400mW
- Operating temperature: -40...85°C
- Relay series: G5LE
- Contact resistance: 100 mOhm
- Output pitch: 2mm
- Coil current: 33.3mA
- Housing description: Standard sealing
