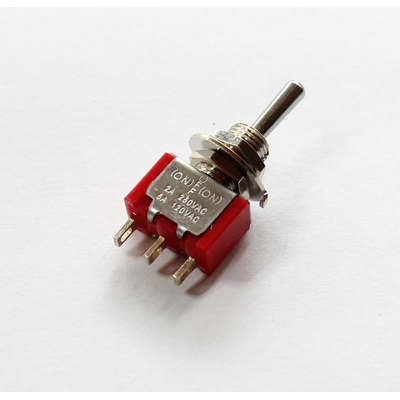

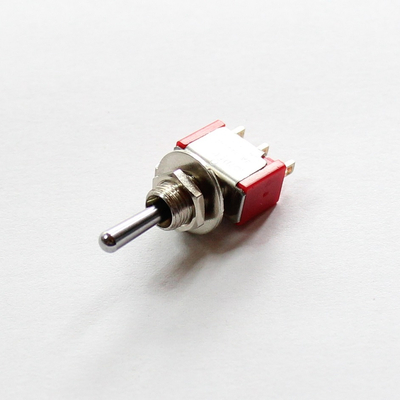

Miniature rocker switch (on)/off/(on) with center position
Description
Miniature rocker switch (on)/off/(on) with center position
- Switch type: Lever switch
- Number of positions: 3
- Contact configuration: SP3T
- Switching mode: (ON)-OFF-(ON)
- Contact rating AC @R 2A / 250VAC
- Contact rating DC @R 5A / 28VDC
- Outputs: Solder connection
- Operating temperature: -35...80°C
- Lever type: Round
- Mounting dimensions: Ø6.35mm
- Lever height: 10.41mm
- Housing dimensions: 12.7x6.86x8.89mm
- Contact coating Silver-plated
- Matching accessories
- Mechanical durability: 40,000 cycles
- Number of stable positions: 1
