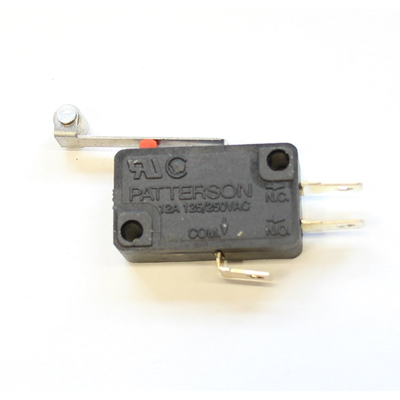

Microswitch on-(on) with lever 26mm and roll 6A/250VAC
Description
Microswitch on-(on) with 26mm lever and roller 6A/250VAC
- Switch type: Snap Action microswitch
- Switch features: With lever (with roller)
- Contact configuration: SPDT
- Contact rating: AC @R (with resistive load) 6A/250VAC
- Switching mode: On/Off
- Number of positions: 2
- Number of stable positions: 1-digit
- Ingress protection class: IP40
- Outputs: 4.8mm flat plug
- Housing dimensions: 28x10.3x16mm
- Operating temperature: -25...80°C
- Switching force 1.6N
- Lever length 26mm
- Electrical life 100,000 cycles
- Max. contact resistance 15MOhm
- Min. insulation resistance 100MO
