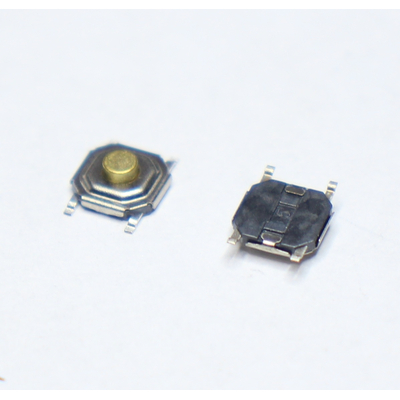

Microswitch off/(on) 5.2 x 5.2mm, key height 2.0mm
Description
Microswitch off/(on) 5.2 x 5.2mm, key height 2.0mm
- Switch type: Microswitch TACT
- Contact configuration: SPST
- Number of positions: 2
- Contact rating: DC @R (resistive load) 0.05A / 12VDC
- Mounting: SMT
- Switching force: 2.6N

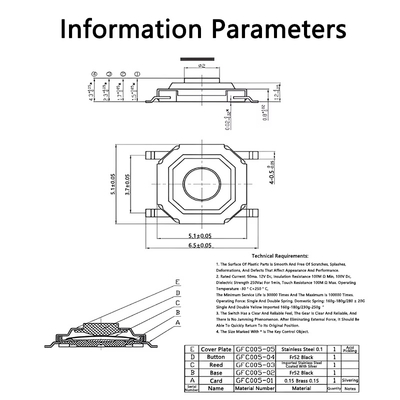

- Housing dimensions: 5.2 x 5.2 x 2.0mm
- Button height (PCB measured): 2.0mm
- Switching mode: off/(on)
- Operating temperature: -30...85°C
- Key shape: round
- Key color: silver
- Printed circuit board mounting outputs
- Max. contact resistance: 30MOhm
- Min. insulation resistance: 200MOhm
- Mechanical durability: 50,000 cycles
