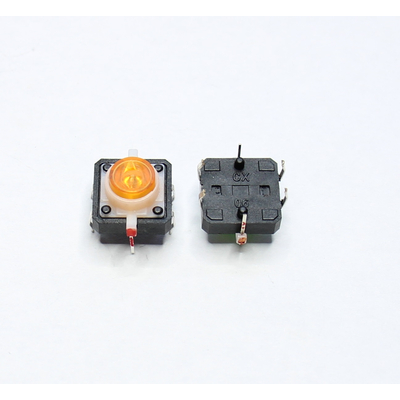

Microswitch TACT on/off 12 x 12 mm key height 7.3 mm with yellow LED THT
Description
Microswitch on/off 12 x 12 mm, key height 7.3 mm with yellow LED, THT
- Switch type: Microswitch TACT
- Contact configuration: SPST-NO
- Number of positions: 2
- Ambient temperature: -25 °C to +85 °C
- Relative humidity (40 °C): ? 80%
- Contact rating: DC resistive load 12V 50mA
- Contact resistance: ? 100MOhm
- Insulation resistance: 100MOhm ? 250 VDC/1 min
- Mounting: THT
- Illumination yellow
- LED voltage ? 3VDC (recommended use with resistor)
- Dielectric strength 250VAC (50Hz 1 min.)
- Electrical lifespan 100,000 cycles
- Mechanical lifespan 100,000 cells
- Travel 0.25±0.1mm
- Actuating force 160±50gf
- Contact material copper
- Body color black
