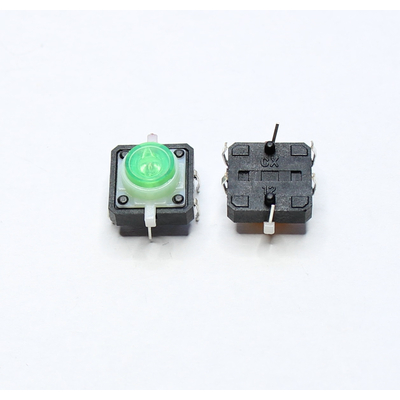

Microswitch TACT on/(off )12 x 12 mm key height 7.3 mm with green LED THT
Description
Microswitch on/(off )12 x 12 mm, key height 7.3 mm with green LED, THT
- Switch type: Microswitch TACT
- Contact configuration: SPST-NO
- Number of positions: 2
- Ambient temperature: -25 °C to +85 °C
- Relative humidity (40 °C): ? 80%
- Contact rating: DC resistive load 12V 50mA
- Contact resistance: ? 100Mohm
- Insulation resistance: 100Mohm ? 250VDC/1 min
- Mounting: THT
- Illumination Green
- LED voltage ? 3VDC (recommended use with resistor)
- Dielectric strength 250VAC (50Hz 1 min.)
- Electrical lifespan 100,000 cycles
- Mechanical lifespan 100,000 cycles
- Travel 0.25±0.1mm
- Actuating force 160±50gf
- Contact material copper
- Body color black
