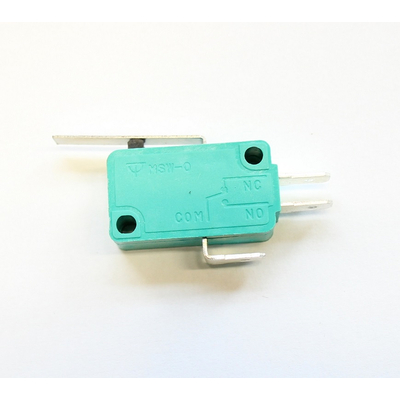

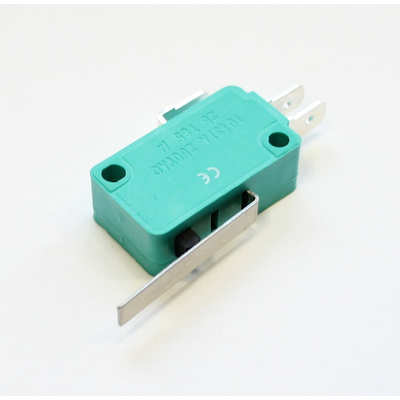

Microswitch SNAP ACTION with lever 27mm ON-(ON) 10A/250VAC
Description
SNAP ACTION micro switch with lever, 27mm, 1 toggle, ON-(ON), 10A/250VAC
- Switch type: SNAP ACTION micro switch
- Switch properties: with lever
- Contact configuration: SPDT
- Contact rating: AC @R (with resistive load) 10A/250VAC
- Switching method: ON-(ON)
- Number of positions: 2
- Number of stable positions: 1-digit
- Sealing class: IP40
- Outputs: 4.8mm flat plug
- Housing dimensions: 28x10.3x16mm
- Operating temperature: -25...80°C
- Switching force: 1.6N
- Lever length: 27mm
- Electrical life: 100,000 cycles (max.)
- Contact resistance: 30MOhm
- Min. insulation resistance: 100MOhm
