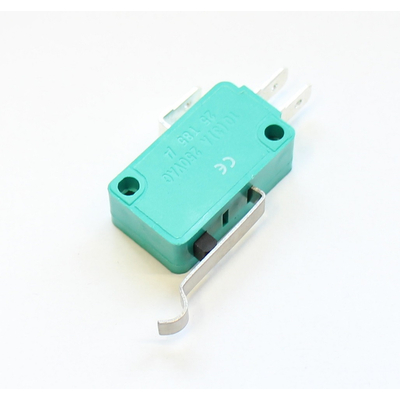

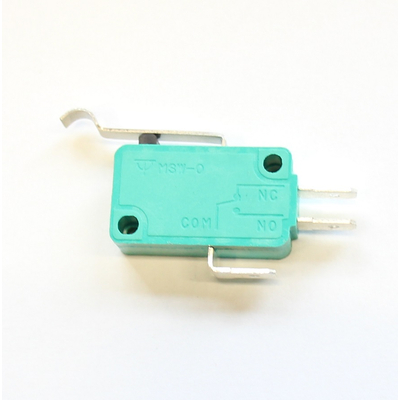

Microswitch SNAP ACTION 23mm with lever and rollsimulation ON-(ON) 10A/250VAC

Item number: 950387031

Category: Microswitch

1,85 €

including 19% VAT. , (Standard)

From piece Price per unit
3 1,79 €
In stock!

Shipping time: 2 - 5 workdays

piece

Description

SNAP ACTION microswitch with 23mm lever and roller simulation on / (on) 10A/250VAC
  • Switch type: SNAP ACTION microswitch
  • Switch features: with roller-simulating lever
  • Contact configuration: SPDT
  • Contact rating: AC @R (resistive load) 10A / 250VAC
  • Switching mode: ON-(ON)
  • Number of positions: 2
  • Number of stable positions: 1
  • Ingress protection class: IP40
  • Outputs: 4.8mm flat connector
  • Housing dimensions: 28 x 10.3 x 16mm
    • Operating temperature -25...80°C Switching force 1.6 N Lever length 23 mm Electrical lifespan 100,000 cycles Max. contact resistance 30 m? Min. insulation resistance 100 M?
