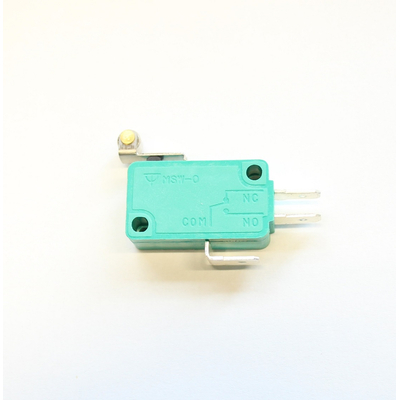

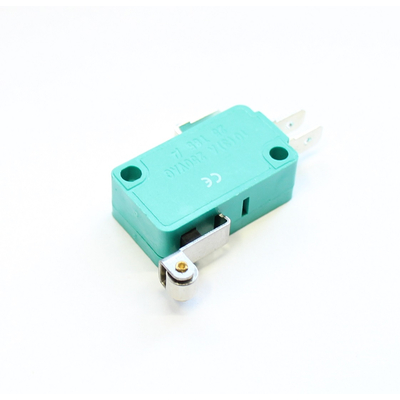

Microswitch SNAP ACTION 12mm with lever and roll ON-(ON) 10A/250VAC
Description
SNAP ACTION microswitch with 12mm lever and roller 1 turn ON-(ON) 10A/250VAC
- Switch type: SNAP ACTION microswitch
- Switch features: with lever (with roller)
- Contact configuration: SPDT
- Contact rating: AC @R (with resistive load) 10A/250VAC
- Switching mode: ON-(ON)
- Number of positions: 2
- Number of stable positions: 1-digit
- Ingress protection class: IP40
- Outputs: 4.8mm flat plug
- Housing dimensions: 28x10.3x16mm
- Operating temperature -25...80°C
- Switching force 1.6N
- Lever length 12mm
- Electrical life 100,000 cycles
- Max. contact resistance 30MOhms
- Min. insulation resistance 100MOhms
