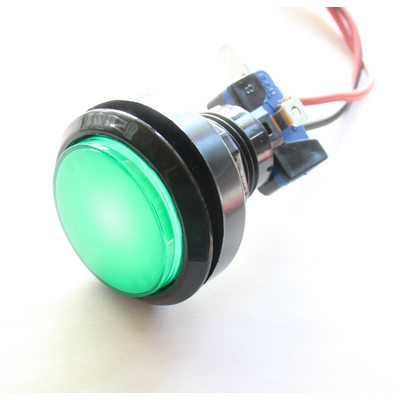

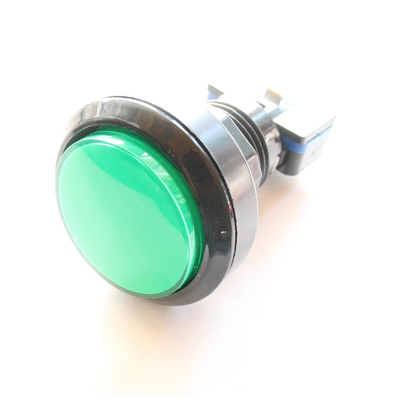

Large-surface push button off/on Ø 45.5mm green with LED illumination 12VDC retractable

Item number: 89180624GNV

Dimensions:400 x 400 mmWeight:10 kgShipping weight:10.25 kg

Category: Push button with central mounting

4,95 €

including 19% VAT. , (Standard)

From piece Price per unit
2 4,80 €
In stock!

Shipping time: 2 - 5 workdays

piece

Description

Large-surface push button off/on Ø 45.5mm green with LED illumination 12VDC retractable
    Manufacturer ---
    Switch type: Push
    Number of positions: 2
    Contact configuration: SPST NO
    Contact rating: AC @R 10A / 250V AC
    Switching method: OFF-(ON)
    Illumination color: White
    Illumination: LED 12V DC (higher voltages possible with series resistor)
    Switch outputs: 4.8x0.5mm
    LED light outputs: 6.3x0.5mm
    Operating temperature: -25...70°C
    Electrical life: 100,000 cycles
    Mechanical durability: 1000,000 Cycles
    Switch shape: protruding, round
    Mounting dimensions: Ø23.5mm
    Body color: black
    Button color: green
    Diameter: 45.5mm
    Mounting for front panels max. 18mm
    Mounting for recessed installation max. 30mm
    Installation depth: 65mm
    Number of stable positions: 1
    Microswitch replaceable
