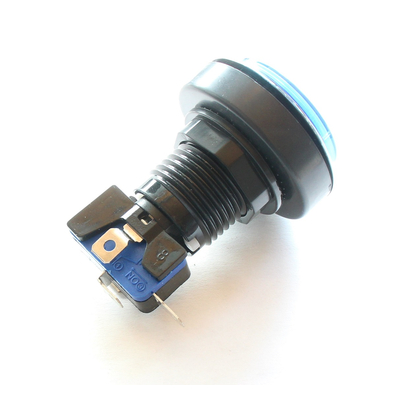

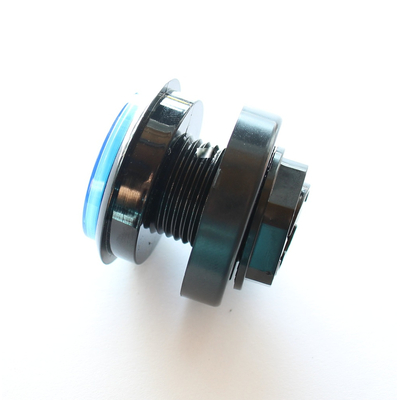

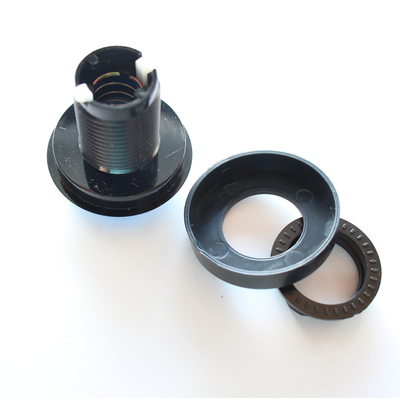

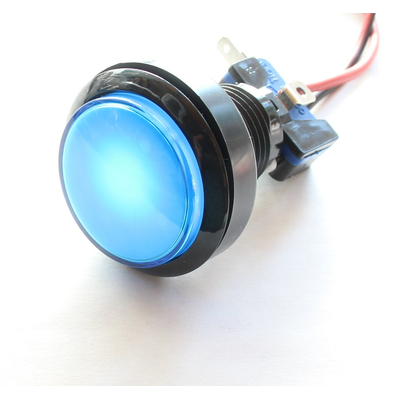

Large push button off/(on) Ø 45.5mm blue with illumination 12V retractable
Description
Large push button off/(on) Ø 45.5mm blue with illumination 12V retractable
- Manufacturer ---
Switch type: Push
Number of positions: 2
Contact configuration: SPST NO
Contact rating AC @R 10A / 250V AC
Switching mode OFF-(ON)
Illumination color blue
Illumination LED 12VDC (higher voltages possible with series resistor)
Switch outputs 4.8x0.5mm
LED light outputs 6.3x0.5mm
Operating temperature -25...70°C
Electrical life 100,000 cycles
Mechanical durability 1,000,000 cycles
Switch shape protruding, round
Mounting dimensions Ø23.5mm
Body color black
Button color blue
Diameter 44mm
Mounting For front panels max. 18mm
Mounting for recessed installation max. 30mm
Installation depth 65mm
Number of stable positions 1
Microswitch replaceable
