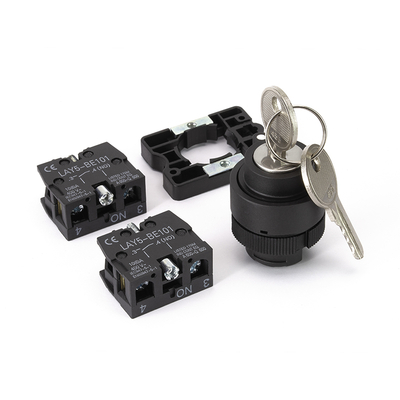

Key switch 22mm 2 x on/on
Description
Key switch 22mm 2 x on/on
Built-in key switch for industry and control cabinet construction or even home applications
Built-in key switch for industry and control cabinet construction or even home applications
- 2 switching positions (left and right, left and right, one switch contact is operated
- Key can only be removed in the left position
- 2 switching contacts (2 x make contacts) max. 400VAC / 10A
- Installation diameter 22 mm
- Thread height 10mm
- Installation depth 45mm
- Construction height 20mm
- Screw terminals for 0.75-2.5mm² cable cross section
- Switch contacts screwed securely
- Easy assembly
- ergonomic design
- modular structure
- Material: plastic, with O-ring for sealing
- incl. 2 keys
- Switch series IN1.
