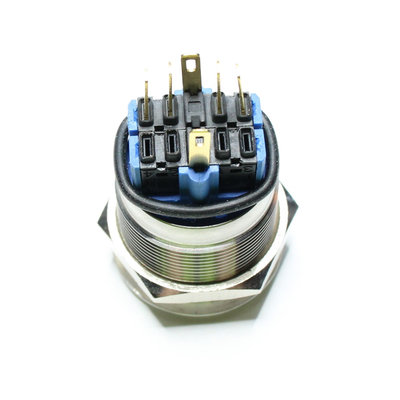

Full metal button 25mm 1 x on / 1 x on with ring lighting blue IP65
Description
Full metal button 25mm 1 x on / 1 x on with ring lighting blue IP65
- Manufacturer ONPOW
- Switch type vandal-proof
- Number of positions 2
- Contact configuration SPST 1xNO 1xNC
- Contact rating AC @R (with ohmic load) 3A / 220V AC
- Contact load capacity DC @R (with ohmic load) 5A / 24V DC
- Sealing class IP65
- Switching method (the position in brackets indicates the current position.) ON-ON
- Lighting LED, with ring
- Lighting color blue
- Lighting voltage 12V
- Outputs solder connection
- Operating temperature -25...55°C
- Electrical lifespan 50,000 cycles
- Max. Contact resistance 50m?
- Switching force 5N
- Mechanical durability 1000000 cycles
- Switch shape flat
- Mounting dimensions Ø25mm
- Body color silver
- Housing material stainless steel
- Ring type rounded
- Test voltage 2kV
- Contact material silver alloy
- Key color silver
- Housing material stainless steel
- Number of stable positions 2
