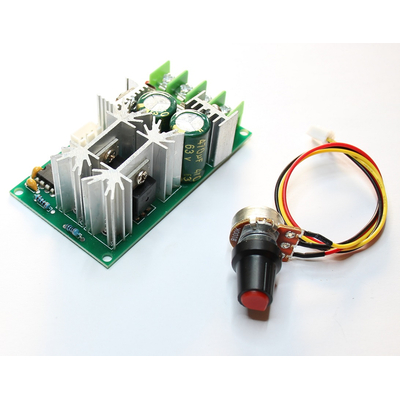

DC motor speed controller / NV dimmer 10-60VDC 20Amax

Item number: 8922120801

Category: PWM DC/DC converter

9,95 €

including 19% VAT. , (Standard)

From piece Price per unit
2 9,65 €
In stock!

Shipping time: 2 - 5 workdays

piece

Description

DC motor speed controller / NV dimmer 10-60VDC 20Amax
for controlling the speed of a DC motor. Also very suitable as a dimmer for LEDs.
    High efficiency
    High torque
    Low heat generation
    Reverse polarity protection
    High current protection

Specification


  • Operating voltage: DC 10V - DC 60V
  • Control power max.: 1200W
  • Continuous control power: 450W
  • Operating temperature: -40°-+85°
  • Current: Rated 10A, Max 20A
  • Static current: 0.02A (standby)
  • PWM duty cycle: 0% -100%
  • PWM frequency: 25kHz
  • Material: plastic, metal
  • Dimensions (L * W * H): 76mm x 44mm x 26m

Always ensure good ventilation and use a fan if necessary
