Circuit switch/circuit breaker 3-pole for DIN rail mounting B16 16A

Item number: 100238950

Category: Circuit breakers and accessories

16,75 €

including 19% VAT. , (Standard)

From piece Price per unit
2 16,25 €
Available

Shipping time: 2 - 5 workdays

piece

Description

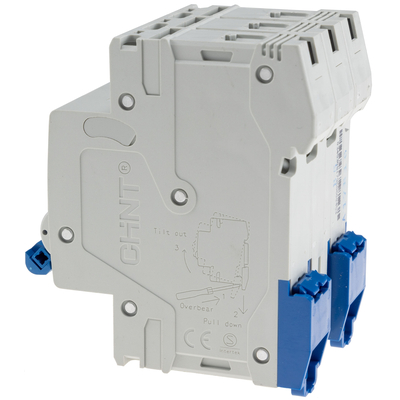

Circuit switch/circuit breaker 3-pole for DIN rail mounting B16 16A
Standard circuit breaker for control cabinets to protect circuits against short circuits. - or overcurrents. Designed for use in private households or industrial applications. Area of ??application: Protection against high inrush currents (e.g. motors).

Technical details:

  • 3-pole with type B tripping characteristic
  • According to IEC/EN 60898-1 and IEC/EN 60947-2
  • Rated voltage - / current 230V (400V) /16A
  • Mounting on busbar according to EN60715 (35mm)
  • Viewing window / control window for status checking
  • Clamp connection size for cables up to 25mm²
  • Clamp connection size for rail up to 10mm²
  • Protection class IP20 / temperature range -10 to +40°C
