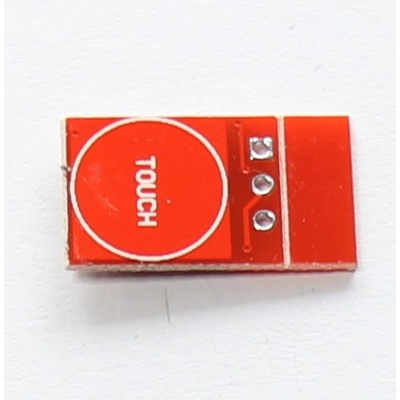

Capacitive switch adjustable off/on or off/on

• Operating voltage: 2.5V-5.5VDC
• Standby current: 1.5muA (typical)
• Response time: 220ms in power-save mode, up to 60ms in fast mode
• Output type: Digital (HIGH/LOW)
• Configuration: Adjustable output type (Direct/Toggle) and active levels (Low/High) via solder bridges or external pins
• Calibration: Automatic calibration every approximately 4 seconds
• Dimensions: 15 x 10 x 2.5mm

Connections and Functions

The settings can be changed by soldering the jumpers on the back.

AB = 00: Button / TTL level high (default)
AB = 01: Switch / TTL level high
AB = 10: Button / TTL level low
AB = 11: Switch / TTL level low
