8 channel Matrix Zone Distributor / audio mixer with 8 outputs and matrix - MZD-88

Item number: 6010304120

Category: Audio Distributors & Multiroom

479,00 €

including 19% VAT. , (Standard)

From piece Price per unit
2 464,63 €
Available

Shipping time: 2 - 5 workdays

piece

Description

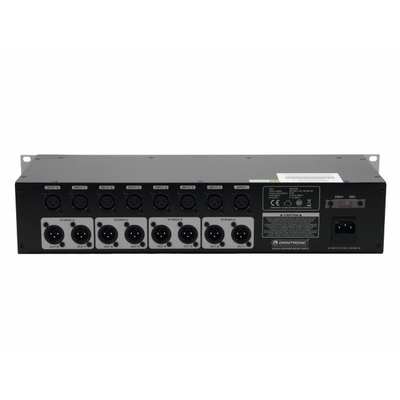

8 channel Matrix Zone Distributor / audio mixer with 8 outputs and matrix - MZD-88
  • Matrix input assignment: 8 audio inputs are freely assignable to each of the 8 outputs
  • Division of the 8 outputs into 4 groups; each with separate level and pan control per channel
  • Ultra flexible configuration modes; distributes the signal of up to 8 audio sources to e.g. 8 mono zones or 4 stereo zones, each with a different output signal
  • Inputs and outputs via balanced XLR jacks
  • Frequency range 20-20000 Hz
  • Rack installation, 2 U

Technical specifications:

Power supply: 115/230 V, 50/60 Hz
Power consumption: 10 W
Frequency range: 20-20000 Hz
Dynamic range: 100 dB
Max. input level: +21 dBU
Input impedance: 10 kohms
Max. gain: +12 dB, per channel
Dimensions (W x D x H): 482 x 195 x 89 mm
Weight: 3.5 kg
Height: 8.3 cm
Width: 48.2 cm
Weight: 3.5 kg
: 19.5 cm
