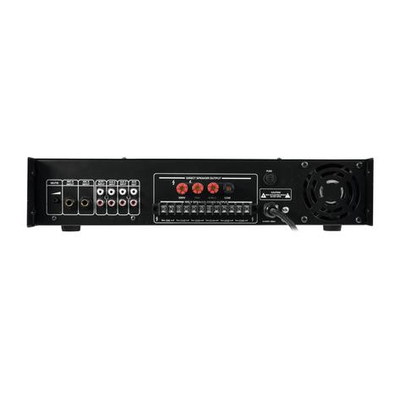

6 zone PA mixing amplifier with USB/SD MP3 Player 250 Wrms - MPVZ-250.6P
Description
6 zone PA mixing amplifier with USB/SD MP3 Player 250 Wrms - MPVZ-250.6P
- Comfortable control of PA speakers via 6-zone technology
- 6 PA zone outputs with separate 5-step level controls
- Master PA output (70 V and 100 V)
- Output for low-impedance speakers (4-16 ohms)
- 2 rear microphone inputs (6.3 mm jack, unbal.)
- 1 front microphone input (combination XLR/6.3 mm jack, unbal.) with adjustable priority circuit
- All microphone inputs with separate level controls

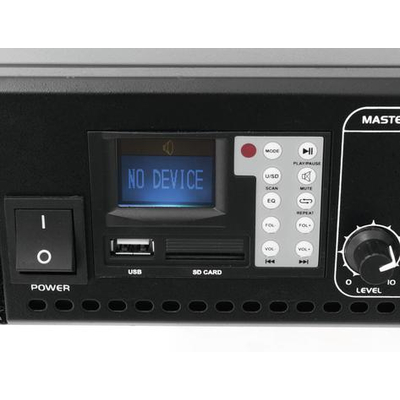

- USB/SD MP3 player
- 3 line inputs (stereo RCA) with separate level controls
- 1 line output (stereo RCA)
- Chime, switchable
- Treble and bass control for the output signal
- 7-fold LED level display
- Master control for the output signal
- Protection circuits with LED indication: over current, short circuit, turn-on delay
- Rack installation
Technische Daten
| Power supply: | 230 V AC, 50 Hz ~ |
| Power consumption: | 500 W |
| Output power: | 250 W RMS |
| Output type: | 70 V, 100 V or 4-16 ohms |
| Output current: | 3,6 A (70 V), 2,5 A (100 V) |
| Mic inputs: | 5 mV, 600 ohms |
| Line inputs: | 300 mV, 10 kohms |
| Speaker connectors: | Screw connectors, terminal block |
| Frequency range: | 80 Hz - 16 kHz |
| Distortion: | 0.5 % (1 kHz) |
| S/N ratio: | 85 dB (line), 75 dB (mic) |
| Playback format audio player: | MP3 |
| Available storage media: | USB devices and SD(HC) cards up to 32 GB |
| File system: | FAT32 |
| Number of files: | max. 999 |
| Dimensions: | 483 x 385 x 92 mm |
