6 channel microphone / line mixer - EM-260

Item number: 6010007075

Entertainment mixer

Category: Mixers

219,50 €

including 19% VAT. , (Standard)

From piece Price per unit
2 212,92 €
Available

Shipping time: 2 - 5 workdays

piece

Description

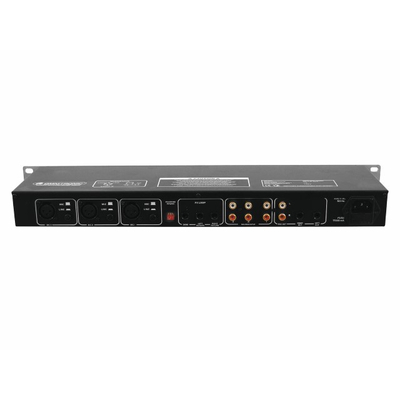

6 channel microphone / line mixer EM-260

  • 6 inputs (3 x mic/line and 3 x line) for mixing to 1 stereo output
  • Ideal e.g. for karaoke when microphones need to mixed with CDs
  • 3 mono input channels mic/line (XLR, bal.), switchable
  • 3 stereo line input channels (RCA)
  • Clip LED for each microphone channel
  • Each microphone input with optional 12 V phantom power
  • FX send/return with FX level control
  • Stereo master out (6.3 mm jack) with 2-band equalizer (highs and lows) and level control
  • Stereo record output (RCA)
  • Rack installation, 1 U

Technical specifications:

Power supply: 115/230 V AC, 50/60 Hz ~
Power consumption: 35 W
Inputs MIC 1-3: XLR
Max. input level: -14 dB
Inputs LINE 1-3: stereo RCA
Max. input level: 24 dB
RETURN: 6.3 mm stereo jack
Outputs:
MASTER: 6.3 mm stereo jack
REC: stereo RCA
SEND: 6.3 mm jack
Tone control:
High: -12 dB to +12 dB/ 10 kHz
Bass: -12 dB to +12 dB/ 100 Hz
Distortion: 0.025 %
S/N ratio: 69 dB
Dimensions (WxDxH): 482 x 123 x 43 mm (19", 1 U)
Weight: 2.2 kg
Shipping weight: 2.60 kg
