1-Channel wireless microphone system 823-832/863-865MHz - UHF-301
Description
1-Channel wireless microphone system 823-832/863-865MHz - UHF-301
- 1-channel multifrequency receiver unit and hand-held microphone with UHF PLL technology
- 93 preset channels in 10 channel groups
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- LCDs for group, frequency and channel
- LEDs for carrier and audio signal
- Volume control

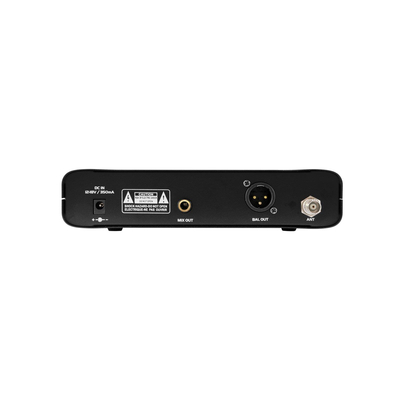

- Balanced XLR output
- Unbalanced 6.3 mm jack
- Jack cable included
- Removable antenna (BNC connection)
- Incl. mounting brackets for 483 mm rack installation
- 1 dynamic microphone with cardioid polar pattern and LCD for battery capacity and frequency
- Matching pocket transmitter can be ordered separately
- License-free and approved in large parts of the EU (please check on a country-by-country basis)
Receiver
- Desktop console housing; (19") 48.3 cm rack installation (provided) 1 U
Microphone
- Polar pattern: Cardioid
- Use a operating range up to 60m
Technical specifications:
| Type: | Wireless set |
| Weight: | 1.51 kg |
| Receiver | |
| Power supply: | 100-240 V AC, 50/60 Hz 12 V DC 350 mA |
| Power consumption: | 4 W |
| Number of channels: | 1 |
| S/N ratio: | >80 dB |
| Power connection: | Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
| Control elements: | Power switch, level control, encoder |
| Connections: | Output: 1 x Microphone via 6.3 mm plug (unbal.) Output: 1 x Microphone via 3-pin XLR |
| Frequency selection: | 93 Switchable frequencys |
| Modulation: | FM |
| RF power output: | 10 mW |
| Material: | Metal |
| Housing design: | Desktop console housing (19") 48.3 cm rack installation (provided) 1 U |
| Microphone | |
| Type: | Transmitter |
| Power supply: | 3 V DC |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 50 - 18.000 Hz |
| THD: | <0.5 % at 1 kHz |
| Power connection: | Battery/battery pack |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Frequency stability: | ± 0.001 % |
| Range: | 60 m |
| Switch: | On/off switch |
| Material: | Plastic |
| Dimension: | Length: 25 cm Diameter: Ø 5.2 cm |
| Weight: | 0.23 kg |
