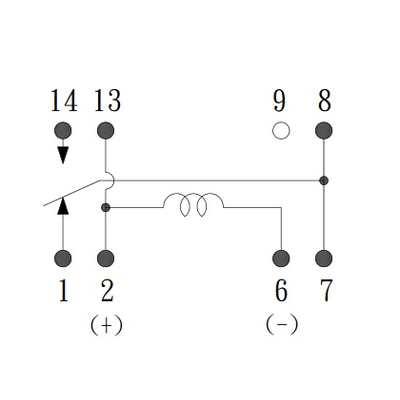

Reedrelais 12VDC 1 x ein 0,5A - D1A1200000 KUAN
Beschreibung
Reedrelais 12VDC 1 x ein 0,5A - D1A1200000 KUAN
3.0 COIL RATINGS: (AT 20°C)
3.1 Coil resistance500 ?(±10%)
3.2 Nominal coil voltage 12 VDC
3.3 Maximum Continuous voltage 20 VDC
3.4 Must operate9 VDC
3.5 Must release1.2 VDC
3.6 Rated current24 mA
4.0 ELECTRONICAL CHARACTERISTICS
4.1 Contact resistance 150 m?(max)
4.2 Operate time1.0 ms (max)
4.3 Bounce time2.0 ms (max)
4.4 Release time1.0 ms (max)
4.5 Insulation resistance (100 VDC open contact) 109?(min)
4.6 Power3 VA (max) 4.7 Switching voltage100 VDC (max) 4.8 Switching current0.25 A (max)
4.9 Carry current0.5 A (max)
4.10 Breakdown voltage (across open contact) 200 VDC (min) (between coil & contact) 500 VDC (min)
4.11 Life expectancy (signal level) 5x107
4.12 Operating temp-40 to 85°C
4.13 Storage temp-50 to 125°C
4.14 Resonant frequency3.5 KHZ
4.15 Vibration (10-2000HZ)20 g (max)
4.16 Minimum permissible load100 mVDC 10uA
