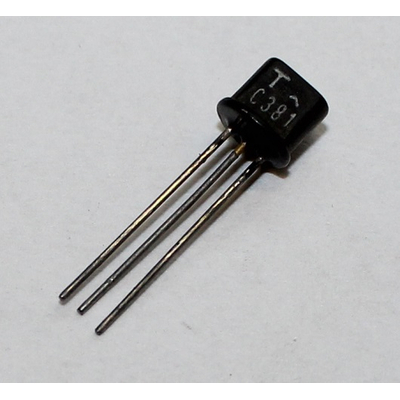

2SC 381 NPN 30V 0,1A 200mW TO 98-1
Description
2SC 381 NPN 30V 0,1A 200mW TO 98-1
2SC381
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 0.2
Maximum collector-base voltage |Ucb|, V: 30
Maximum collector-emitter voltage |Uce|, V: 20
Maximum emitter-base voltage |Ueb|, V: 4
Maximum collector current |Ic max|, A: 0.1
Maksimalna temperatura (Tj), °C: 125
Transition frequency (ft), MHz: 150
Collector capacitance (Cc), pF: 4
Forward current transfer ratio (hFE), min: 90
Noise Figure, dB: -
Package of 2SC381 transistor: TO98-1
