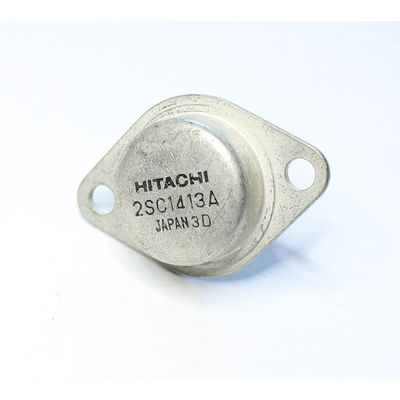

2SC1413A NPN 1200V 5A 50W TO3

Item number: 2SC1413A

Category: 2SC...

3,25 €

including 19% VAT. , plus shipping (Standard)

From piece Price per unit
3 3,15 €
In stock!

Shipping time: 2 - 5 workdays

piece

Description

2SC1413A NPN 1200V 5A 50W TO3
    Material of Transistor: Si
    Polarity: NPN
    Maximum Collector Power Dissipation (Pc): 50 W
    Maximum Collector-Base Voltage |Vcb|: 1500 V
    Maximum Collector-Emitter Voltage |Vce|: 500 V
    Maximum Emitter-Base Voltage |Veb|: 6 V
    Maximum Collector Current |Ic max|: 5 A
    Max. Operating Junction Temperature (Tj): 150 °C
    Transition Frequency (ft): 2 MHz
    Collector Capacitance (Cc): 300 pF
    Forward Current Transfer Ratio (hFE), MIN: 20
    Noise Figure, dB: -
    Package: TO3
